Continuous Development

Fragalysis Stack development procedures for Kubernetes deployment and the role of Travis in the Fragalysis Stack CI process.

The OpenShift deployment of the Stack used Jenkins as the CI/CD build framework, relying on the container registry and build capabilities provided by OpenShift. Kubernetes has no registry as such and although you can install Jenkins it’s role is diminished and it’s of much less value than its OpenShift counterpart.

Instead, in the Kubernetes world, without a clear CI/CD framework emerging, we have switched to relying on an external build process (Travis) to build, test and deploy the Fragalysis Stack container images.

Travis is an external cloud-based service, free for open-source projects that is mature used by many to test and build software. It is programmed through the use of .travis.yml files placed in the root directory of GitHub projects.

We have added facilities to chain builds (for one Travis GitHub project to trigger another) using our Trigger Travis repository and to also deploy container images to the cluster using pre-deployed AWX Jobs using our Trigger AWX repository.

Why not use Jenkins?

  • Jenkins is indeed powerful but it relies on Agents in order to run Jobs. Setting these agents up requires effort. Travis runs in the cloud where it has agents, of all kinds, that are simple and easy to configure.
  • Jenkins is a complex service with a need for persistence (volumes) that would eat away at the Kubernetes cluster in both CPU, disk and cost. Travis does not require resources in the Kubernetes cluster
  • Job control in Jenkins is defined through the Groovy language. It’s powerful but it’s yet another language and its syntax is not the easiest to master. Travis is programmed in YAML, a syntax many are already familiar with. It is simple, and easy to read.
  • Management and configuration of the Jenkins server is not trivial and incurs management and maintenance costs. Travis needs no management.

Fragalysis Stack Repositories

The stack is distributed as two container images, a Loader and a Stack. There are five GitHub repositories involved in the build of these two images:

fragalysis
fragalysis-backend
fragalysis-frontend
fragalysis-loader
fragalysis-stack

The by-product of each repository is: -

fragalysis
The output of the fragalysis repository is a small package of Python code, written to PyPI when the repository is tagged. The package is part of the fragalysis-backend image’s Python requirements [1].
fragalysis-backend
The output of the fragalysis-backend is a container image, written to Docker Hub. This image is used as a FROM image in both the Loader and Stack. The backend FROM image is based on informaticsmatters/rdkit-python-debian:latest.
fragalysis-frontend
The output of the fragalysis-frontend is nothing. The code is instead cloned into the container image of the fragalysis-stack when it is built.
fragalysis-loader
The output of the fragalysis-loader is a container image, written to Docker Hub. It uses the image produced by the fragalysis-backend as it’s FROM image.
fragalysis-stack
The output of the fragalysis-stack is a container image, written to Docker Hub. Like the Loader it uses the image produced by the fragalysis-backend as it’s FROM image.

Build example (master)

Let’s see how Travis works for the Fragalysis Stack by exploring a simple example, where a user-change to a repository’s master branch results in the stack being re-built, illustrated by the following diagram.

../_images/frag-travis.001.png

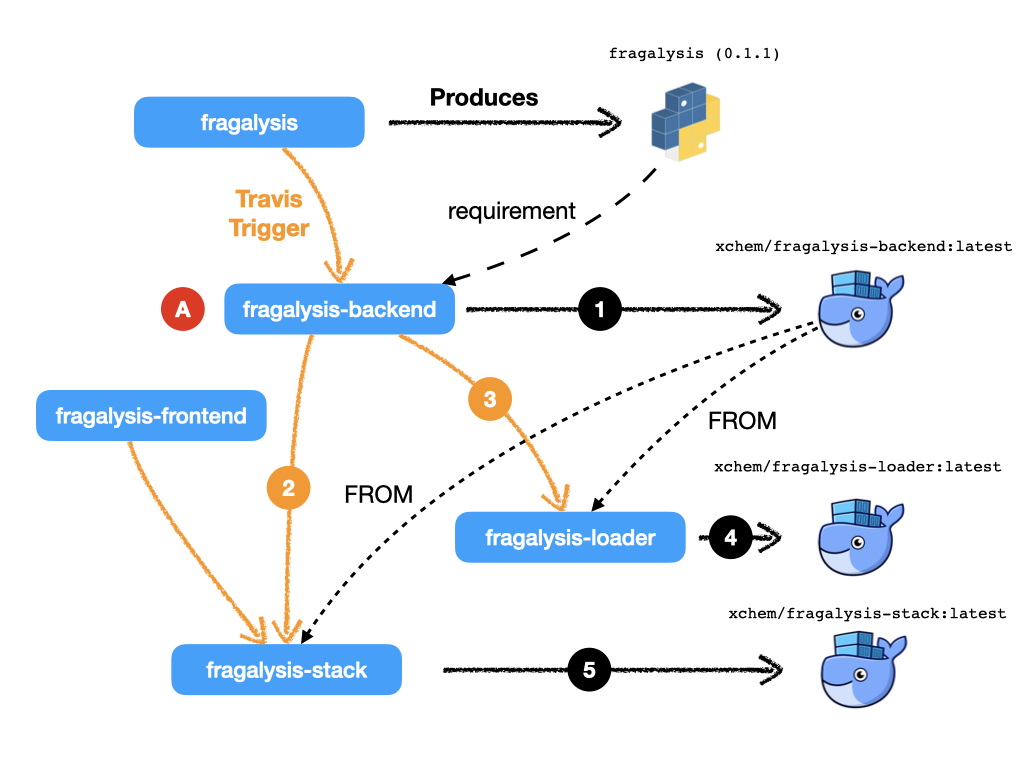

The diagram illustrates a user making a change (A) to the master branch of fragalysis-backend repository. The following steps occur, in approximate order: -

  1. Travis detects the change and creates a VM on which the build (and testing) takes place. The result of the build is a docker push to Docker Hub. The image pushed is xchem/fragalysis-backend:latest where the docker user is xchem, the project is fragalysis-backend and the tag is latest (the significance of these values will become important later).
  2. At the end of the build of fragalysis-backend Travis is configured to trigger a build in the remote repository fragalysis-stack [2] . There’s a new backend image so the stack, which depends on it, is instructed to build. It uses the Trigger Travis code to do this.
  3. As the Loader also depends on the output of this build Travis also triggers* the fragalysis-loader to build.
  4. The fragalysis-loader Travis session (triggered by the backend) builds and, as its output is a container image, the image is pushed to Docker Hub. The image pushed is xchem/fragalysis-loader:latest
  5. The fragalysis-stack Travis session (also triggered by the backend changes above) builds and its image is pushed to Docker Hub. The image pushed is xchem/fragalysis-stack:latest

More scenarios (here be Dragons)

That’s a simplistic illustration of a build chain from one master branch rippling through the dependent builds on the master branch.

But software development’s more complicated than just changes to the master branch and, in these cases, Travis will need some help.

How does Travis know which repos to trigger?

This is the responsibility of the repository owner. Our Trigger Travis utility is used to simplify the calls the the Travis API but the owner of each repository needs to know which repositories to trigger and simply adds calls to the Trigger Travis at a suitable point in their own .travis.yml file.

The mechanism is essentially a push-driven trigger from upstream repository to downstream. A downstream repository cannot monitor upstream repositories, the author has to know which repositories depend on their code.

Because Jenkins runs continuously it does allow Jobs to watch other builds (Jobs) that are upstream and trigger downstream builds (Jobs). But this advantage is considered insignificant compared to the disadvantages (discussed earlier).

How does a repo know what container tag to use?

By convention, in a CI/CD sense, automated builds on master produce container images tagged latest. The Travis build can be easily organised to produce a tag that is the branch name if the build is on a branch. Branch 1-defect might therefore produce images that are pushed to docker using the tag 1-defect

How do I instruct the downstream to use may image?

In our example we’ve assumed the branch being manipulated is master and in this very simple workflow we want all the dependent master branches to build resulting in their own latest images.

But what if you’re working on a defect on the backend, on a branch called 1-defect? Do you want to trigger a rebuild of the Stack’s latest image from fragalysis-backend:latest? No, you want the stack to use fragalysis-backend:1-defect as its FROM.

So this is where the Trigger Travis utility, the Travis REST API and your .travis.yml file in both your upstream and downstream repositories become a little more complex…

The downstream (Stack) repository’s .travis.yml file is configured to expect a number of environment variables, which have default values, namely: -

  • BE_NAMESPACE AND BE_IMAGE_TAG (defaulting to xchem and latest)
  • FE_NAMESPACE AND FE_BRANCH (defaulting to xchem and master)

All the upstream repository’s .travis.yml has to do is ensure that it injects its own value for these variables using it’s STACK_VARS variable. For this example we’d set this to BE_IMAGE_TAG=1-defect,BE_NAMESPACE=xchem and the triggered build will produce for us a Stack image based on our 1-defect backend image.

Brilliant!

But hold on - the stack will be based on 1-defect while producing a latest.

We can add more logic to our downstream repository so that the tag it uses is actually based on the tag found in the BE_IMAGE_TAG value.

Simple … ish

But what if you forget to set the variable?
After all, when you create your backend branch you need to adjust your own Travis settings to provide a value for the variable. If you forget (and you will) you’ll end up causing a new build of latest in the downstream projects that contains your (probably untested) patch. Not what others might expect from latest.

What if I want to trigger a non-master downstream branch?

That’s a very good question.

If I have a 1-defect branch in the upstream build and I want to trigger the 1-defect branch in the downstream project?

It’s solved by the Trigger Travis utility, which allows you to pass in a branch definition so that Travis build the branch you name rather than the default master.

Brilliant!

If you’re clever enough you could even pass this value on to downstreams of the downstream, but that doesn’t apply in our case and starts to get complex very quickly.

But what if you forget to set the variable?
Mmmm … OK … I see a pattern emerging here.

Basically this is where it all gets rather messy, complex and complicated and unless you are very, very disciplined in your project organisation and development you should be treading extremely carefully.

I have a fork of the frontend, how do I…

Here we’d like changes in a branch of a fork of one repository to trigger the build of a branch in the fork of another repository…

STOP! It’s just getting mind-bendingly complex.

Mmmmm
We’re starting to sink deeper into a very complicated world.

Hold on - Jenkins seemed fine. Have we lost something useful?

Yes … but that usefulness came with significant cost: -

Jenkins could do this easily because it was cloning the repositories and building them, while pushing to Docker registries while armed with keys to the xchem Docker Hub account. We had the secrets safely stored in Jenkins. That is something we cannot achieve in the Travis world - we can;t give everyone a key, that’s not secure.

Also, creating OpenShift deployments per developer and configuring Jenkins takes several hours, probably half a day.

So here we have a situation that was easily solved in Jenkins and OpenShift that becomes enormously complicated (and probably impossible or at the very least extremely undesirable) in the Travis World.

It’s here we have to think about how developers develop code for the Fragalysis Stack and Kubernetes.

We need an altogether simpler approach.

Development Recommendation

For the main production images for STAGING (latest) and PRODUCTION (tagged we…

  1. …utilise Travis build triggers in the main xchem repositories. The build triggers are used exclusively for the automatic production of latest images on the master branch.
  2. Similarly, Travis builds tagged images on the main xchem repositories based on the presence of a release (or tag) in the repository. fragalysis-backend:1.0.0 is automatically produced when the owner applies the tag 1.0.0 to the fragalysis-backend repository.

The main stack deployment is therefore automatic, continuous, fast but, above all, simple.

Individual developers…

  1. …work on branches of the main repositories or on branches of forks of the main repos.
  2. No images are automatically produced from changes to branches or forks.
  3. Developers are responsible for building their own container images and for pushing them to Docker Hub. Tina working on branch 1-defect in a fork of the fragalysis-frontend repository is responsible for producing the corresponding stack image by (ideally) also forking and manipulating the fragalysis-stack repository so that it clones her frontend code rather than the code from xchem/fragalysis-frontend.
  4. In order to deploy their project to Kubernetes (the subject of another Guide), users may push their container image to any Docker Hub namespace, project or tag. Tina can push her image as xwz/stack-tina:1-defect if she chooses. This works because she will have deployed her project to Kubernetes (now a developer responsibility) configured tso her cloud deployment’s stack should run using the image xwz/stack-tina:1-defect (rather than the default xchem/fragalysis-stack:latest). Tina can also select the version of the database she wants to use and the URL of the graph database. When she’s done she destroys the Kubernetes project.

The above places significant responsibility on the developer - they have to create the images, they have to push them, they have to create the Kubernetes deployments (subject of another guide) and they have to understand the build process.

But, this is a significantly simpler and a relatively pain-free route to supporting unlimited multi-developer deployments than could be achieved by any automatic system in the timescale available.

After all, if you’re expect to have 20 or 30 developers all on different forks and branches, all developing different aspects of the code, an automatic build system would be enormously complex, fragile and costly to maintain.

Development Examples

To further illustrate the knock-on effect of the above recommendation for individual developers, i.e. that developers are responsible for their own container images using repository forks and branches, a few examples follow.

The following relies on the use of standard Docker build arguments and the ability to use build-time args in the FROM statement, i.e. Docker v17.05 or later.

Developing Front-end (F/E) Code Example

Here you’re developing front-end code, relying on a published backend image and the existing stack implementation.

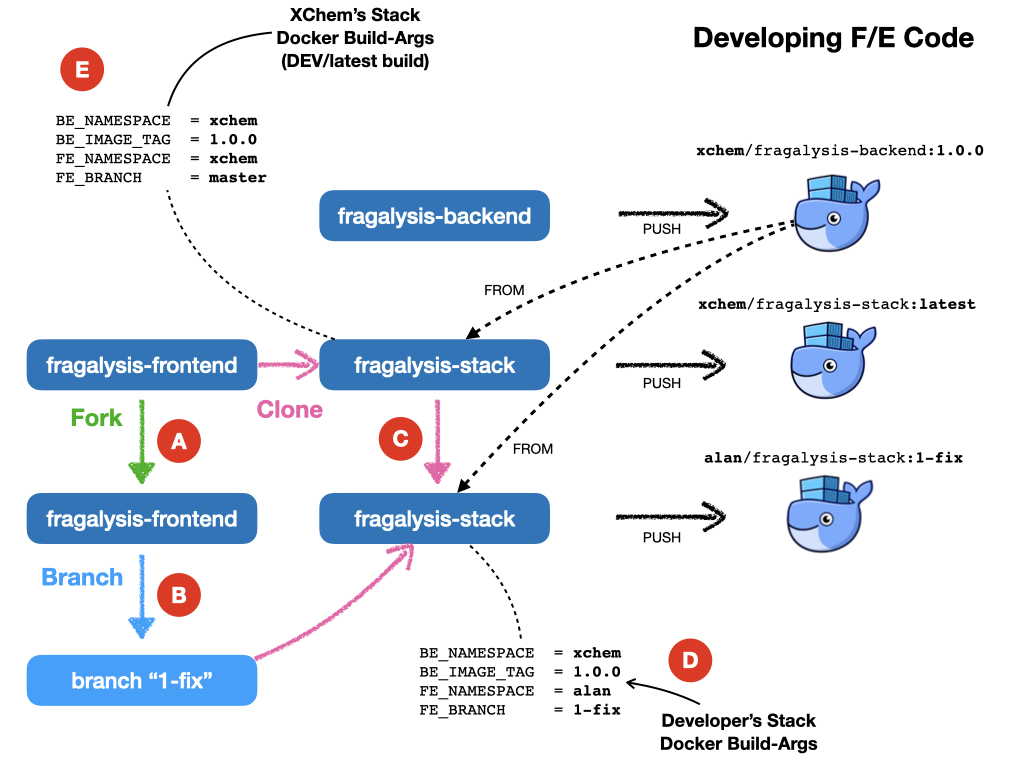

../_images/frag-travis.002.png
  1. The developer forks xchem/fragslysis-frontend, into, say alan/fragslysis-frontend (A)
  2. The developer creates a branch and clones it, e.g. 1-fix, in order to make changes (B)
  3. The developer clones xchem/fragslysis-stack (C)
  4. When a stack image is to be tested the developer builds the stack (locally) using Docker. This could be achieved through the use of a build script [3]) where the developer provides a suitable set of build-args, as shown (D).
  5. Upon conclusion of development a pull-request on the f/e repository propagates the changes back to the XChem repo.

The produced stack, built from a tagged b/e and the code in the developer’s 1-fix branch of their front-end repo fork, can then be pushed to Docker-hub and the Kubernetes cluster triggered to pull and run the updated code.

The diagram also illustrates how the XChem STAGING/latest Fragalysis Stack is built and deployed (automatically using Travis). This official stack uses a tagged b/e image (the same version in this example) but its build args (E) are such that is uses the master branch of the xchem project as the source of the front-end code [4].

Developing Back-end (B/E) Code Example

Here you’re developing back-end code, relying on existing front-end and stack implementation.

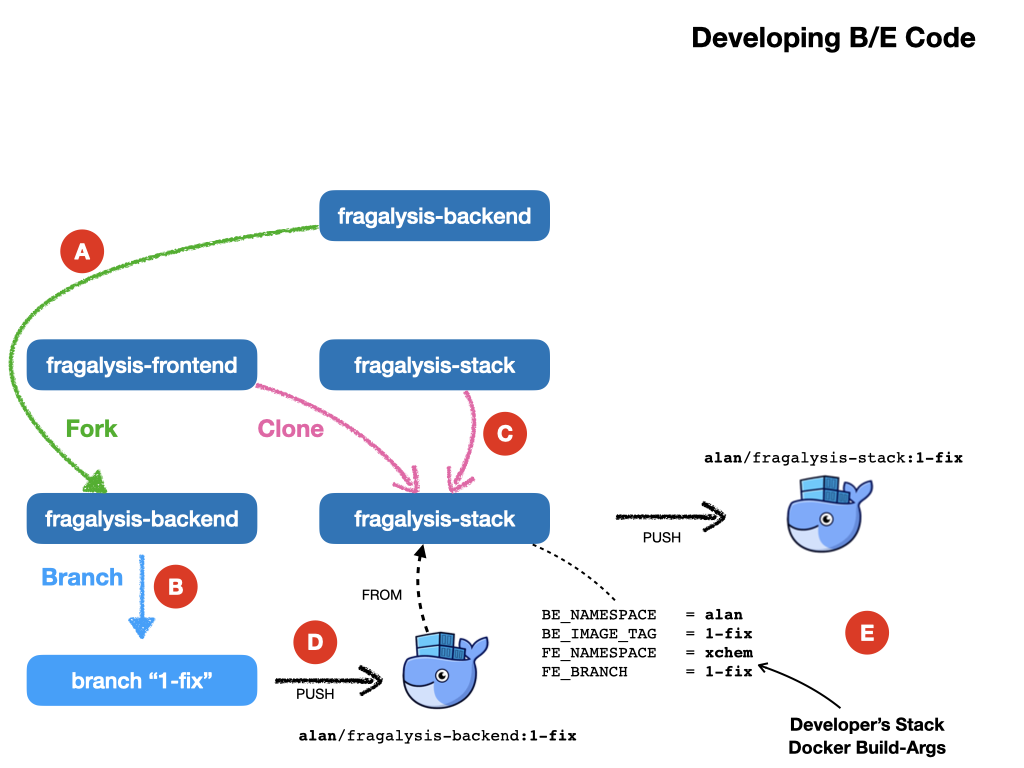

../_images/frag-travis.003.png

Here, in a less cluttered diagram: -

  1. The developer forks xchem/fragslysis-backend, into, say alan/fragslysis-backend (A)
  2. The developer creates a branch and clones it, e.g. 1-fix, in order to make changes (B)
  3. The developer clones xchem/fragslysis-stack (C)
  4. When a stack image is to be tested the developer needs to build their own b/e image (D) (which they can optionally push to Docker hub) and then build the stack (locally), providing suitable build-args, as shown (E).
  5. Upon conclusion of development a pull-request on the b/e repository propagates the changes back to the XChem repo.

Developing Stack Code Example

Here you’re developing stack code, relying on a published back-end image and front-end implementation.

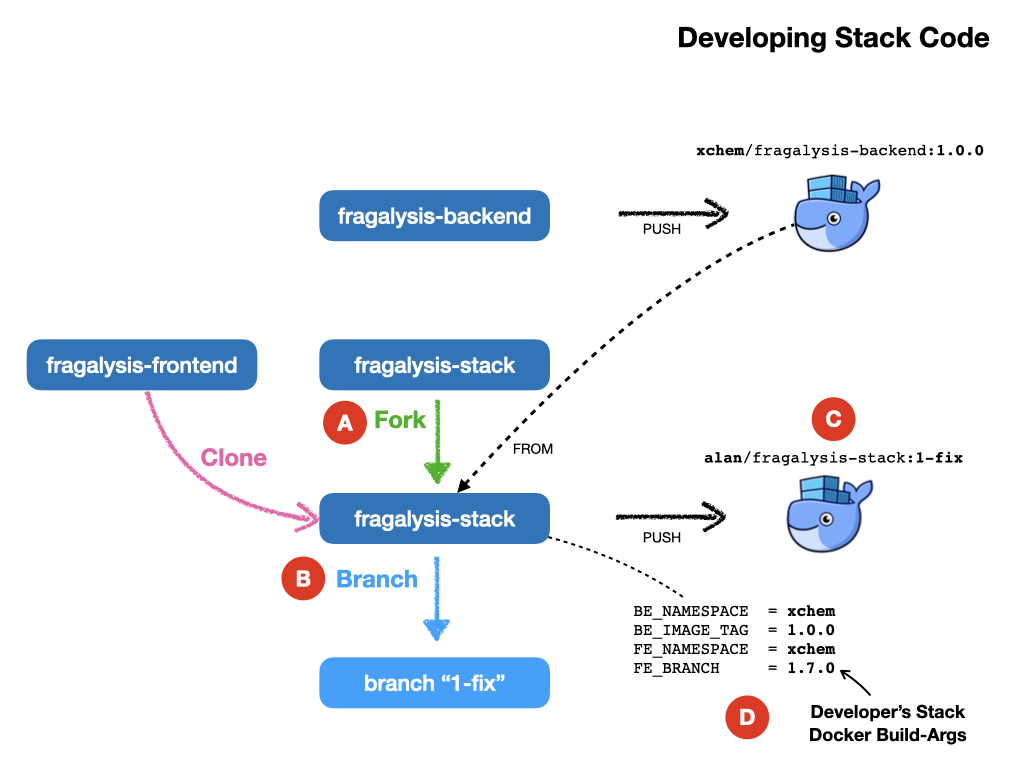

../_images/frag-travis.004.png
  1. The developer forks the fragalysis stack repository (say to a;an) (A)
  2. The developer creates a branch and clones it, e.g. 1-fix, in order to make changes (B)
  3. When a stack image needs to be tested the developer needs to build their own stack image, which is pushed to Docker hub (C) providing suitable build-args, as shown (D).
  4. Upon conclusion of development a pull-request on the stack repository propagates the changes back to the XChem repo.

Developing Everything Example

Here you’re developing front-end, back-end and stack code.

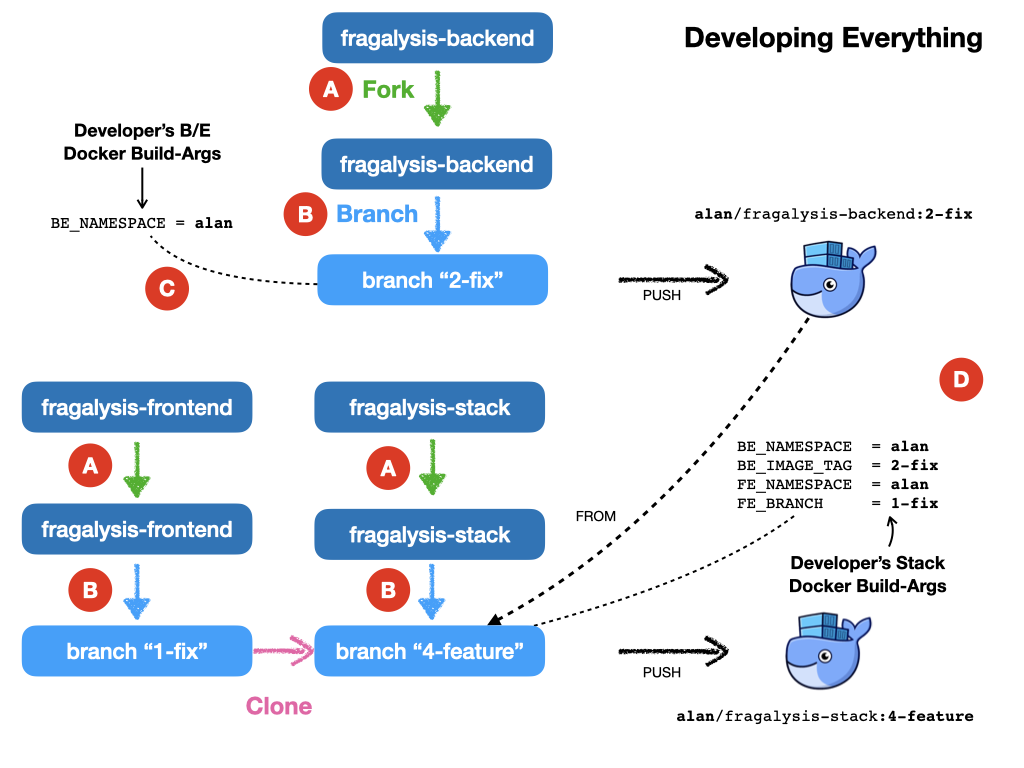

../_images/frag-travis.005.png

This is essentially a combination of the three prior scenarios.

  1. The developer forks each repository (say to alan) (A)
  2. The developer creates a feature branch in each fork and then clones that to make changes (B). In the diagram we have branches 1-fix, 2-fix and 4-feature for the f/e, b/e and stack respectively.
  3. When a stack is to be tested the developer first builds their own b/e (C) using minimal build arguments [5]. The user then builds their own stack, from a clone of their code branch. Here you can see the stack is configured to use the alan/fragalysis-backend:2-fix image and a clone of the f/e 1-fix branch.
  4. The pushed stack can then be deployed to the Kubernetes cluster.
  5. Upon conclusion of development pull-requests for b/e, f/e and stack repositories are made in order to propagate the changes back to the XChem repos.

Development Prep and Cheat-Sheets

The following documents provide helpful start-up guides for development, the debugging of your deployed applications.
